Photovoltaic arrays installed on rooftops or open fields act as massive atmospheric antennas. While a direct lightning strike will vaporize conductors regardless of protection, more than 95% of lightning-induced electrical damage stems from indirect strikes: electromagnetic pulses (EMP) and ground potential rises that induce thousands of volts of destructive transient overvoltage into DC conductor loops.
Without properly sized surge protection and an engineered equipment grounding network, transient spikes travel straight through conduit into sensitive MPPT charge controllers, inverter microprocessors, and battery management electronics. Mitigating this risk requires strict compliance with National Electrical Code (NEC) Article 690 and Article 250 standards.
Here is the engineering framework for grounding solar array frames, sizing DC Surge Protective Devices (SPDs), and bonding grounding electrode systems to protect home battery storage.
Equipment Grounding (EGC) vs System Grounding
A safe solar installation distinguishes clearly between equipment grounding and system grounding:
- Equipment Grounding Conductor (EGC): Non-current-carrying metal frames, conduit boxes, and racking rails. The purpose of the EGC is to provide a low-impedance path to earth to clear ground faults, trip breakers, and prevent human touch shock hazards.
- System Grounding: Electrically connecting one of the active current-carrying conductors (typically the DC negative lead) to earth. Modern transformerless hybrid inverters require floating (ungrounded) DC arrays, relying on onboard Ground Fault Protection (GFP) circuits to detect leakage current rather than bonding DC negative to earth.
Bonding Aluminum Module Frames (Preventing Galvanic Corrosion)
Solar panel frames are manufactured from anodized aluminum, which forms an electrically non-conductive oxide layer. Simply tightening a stainless steel bolt through a mounting hole fails to create a permanent low-impedance bond per NEC 690.43.
Mandatory Bonding Hardware:
- WEEB Washers (Washer, Electrical Equipment Bond): Specialized stainless steel star washers with sharp microscopic teeth that physically pierce the anodized coating, bonding the module frame to the racking rail.
- Lay-in Grounding Lugs: Tin-plated copper lugs bolted to the rack rails using stainless steel hardware. The tin coating prevents galvanic corrosion between dissimilar metals (copper conductor and aluminum frame).
- Bare Copper Conductor: A continuous 6 AWG bare copper conductor bonded across all rack sections, routed directly to the main building Grounding Electrode Conductor (GEC).
Sizing DC Surge Protective Devices (SPDs)

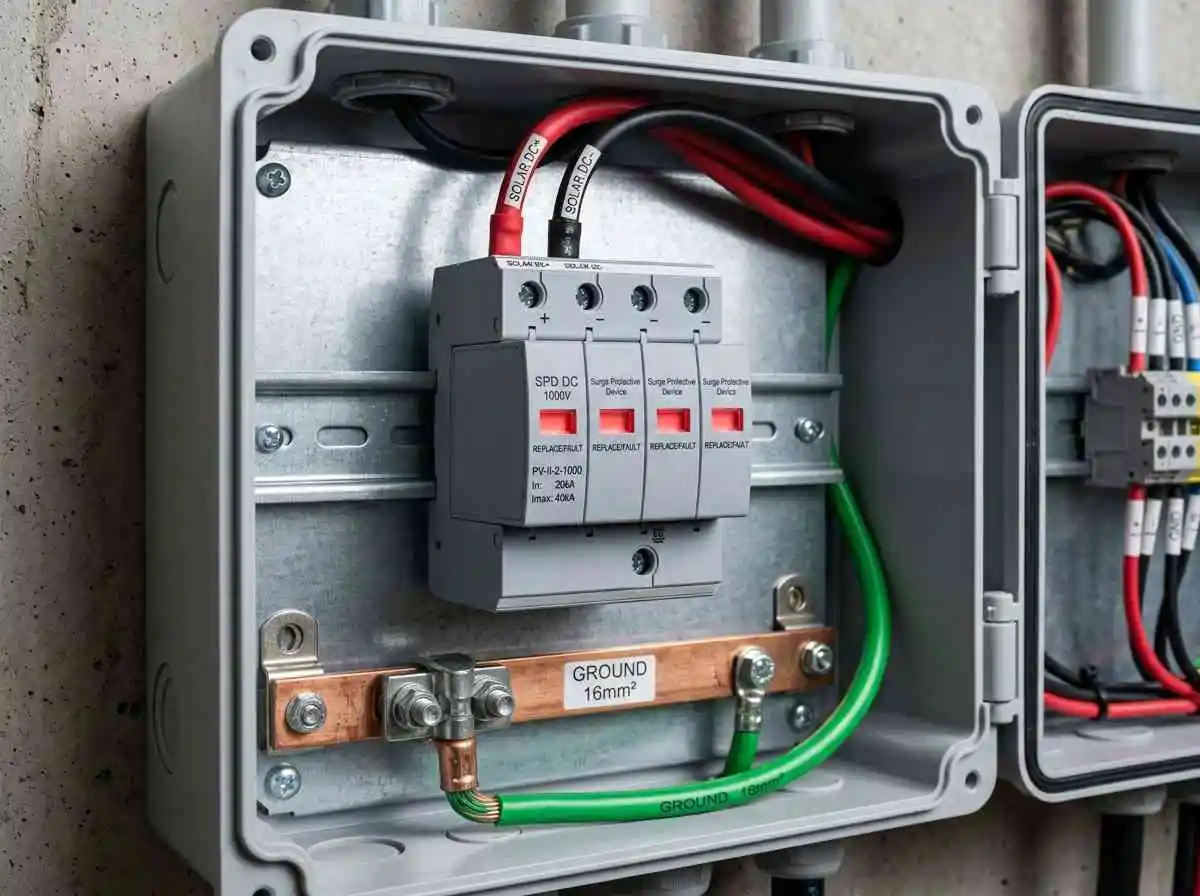

A Surge Protective Device (SPD) incorporates high-speed Metal Oxide Varistors (MOVs) and gas discharge tubes that present near-infinite electrical resistance under standard working voltages. When a transient overvoltage event occurs, the MOV reacts in under 25 nanoseconds, clamping the voltage spike and shunting massive surge current safely into earth ground.
Key Sizing Parameters:
- Type 1 vs Type 2 SPDs:
- Type 1 SPD: Installed between the secondary of the service transformer and the line side of service disconnects. Designed to survive severe external surge events.
- Type 2 SPD: Installed on the load side of the main service disconnect or directly on the DC combiner / MPPT input terminals.
- Maximum Continuous Operating Voltage (MCOV / $U_c$):The SPD’s continuous voltage ceiling must exceed the array’s highest possible open-circuit voltage ($V_{oc}$) in sub-zero winter temperatures, calculated as outlined in our guide on series vs parallel solar string wiring. If cold-weather string voltage reaches 220V DC, select an SPD with an MCOV rating of at least 300V to 600V DC to prevent premature MOV thermal degradation.
- Nominal Discharge Current ($I_n$): Target an SPD rated for at least 20kA (8/20 µs waveform) for residential installations.
SPD Selection Matrix for 48V Storage Systems
| System Location | Operating Voltage Range | Recommended SPD Voltage (MCOV) | Nominal Discharge Current ($I_n$) | Recommended Type |
|---|---|---|---|---|
| Rooftop / Ground Array Combiner | 150V – 500V DC | 600V DC | 20kA – 40kA | Type 1 / Type 2 DC DIN-Rail Unit |
| MPPT Input Terminals | 60V – 250V DC | 300V DC | 20kA | Type 2 DC Surge Protector |
| 48V Battery DC Bus | 48V – 58.4V DC | 75V – 100V DC | 20kA | Dedicated Low-Voltage DC SPD |
| Critical Load AC Panel | 120V / 240V AC | 150V / 300V AC | 20kA – 50kA | Type 2 AC Whole-Panel Surge Arrester |
Grounding Electrode System: The Common Earth Mandate
A catastrophic mistake on ground-mounted arrays, as analyzed in our ground mount vs rooftop solar comparison, is driving an isolated ground rod at the array without bonding it back to the home’s main electrical service ground.
When lightning strikes nearby earth, ground potential gradients differ drastically across short distances. If two independent, unbonded ground rods exist, current will travel backwards through your DC conduit lines to equalize potential across the rods, destroying your inverters and solar DC disconnect switches.
NEC 250.50 Mandate: All grounding electrodes (ground rods, concrete-encased Ufer grounds, well casings) must be bonded together with a minimum 6 AWG copper conductor to create a single, continuous equipotential plane.
Summary
Surge protection and equipment grounding are the primary defense mechanisms shielding thousands of dollars in power electronics from lightning-induced degradation. By bonding every aluminum panel frame with certified WEEB clips, installing dual Type 2 DC SPDs sized above maximum cold-weather open-circuit voltage, and maintaining a unified grounding electrode network, you ensure your residential microgrid survives harsh electrical storms intact.
